Rebuilding Our Backstage Integration for Platform Adoption

· 9 min read
Derik Evangelista
Derik Evangelista
Engineer @ Syntasso

We at Syntasso are very proud of the SKE Backstage integration we built. You apply a Promise, and a Component and a Template automagically appear in your Backstage instance. You can send requests to the platform via GitOps or directly via the Kubernetes API. Changes to the Promise regenerate the Template. You can use an array of CRD properties to control the validation applied to the form, and you can run custom containers to customise what the platform generates.

It is great.

Except, it kinda looks like this:

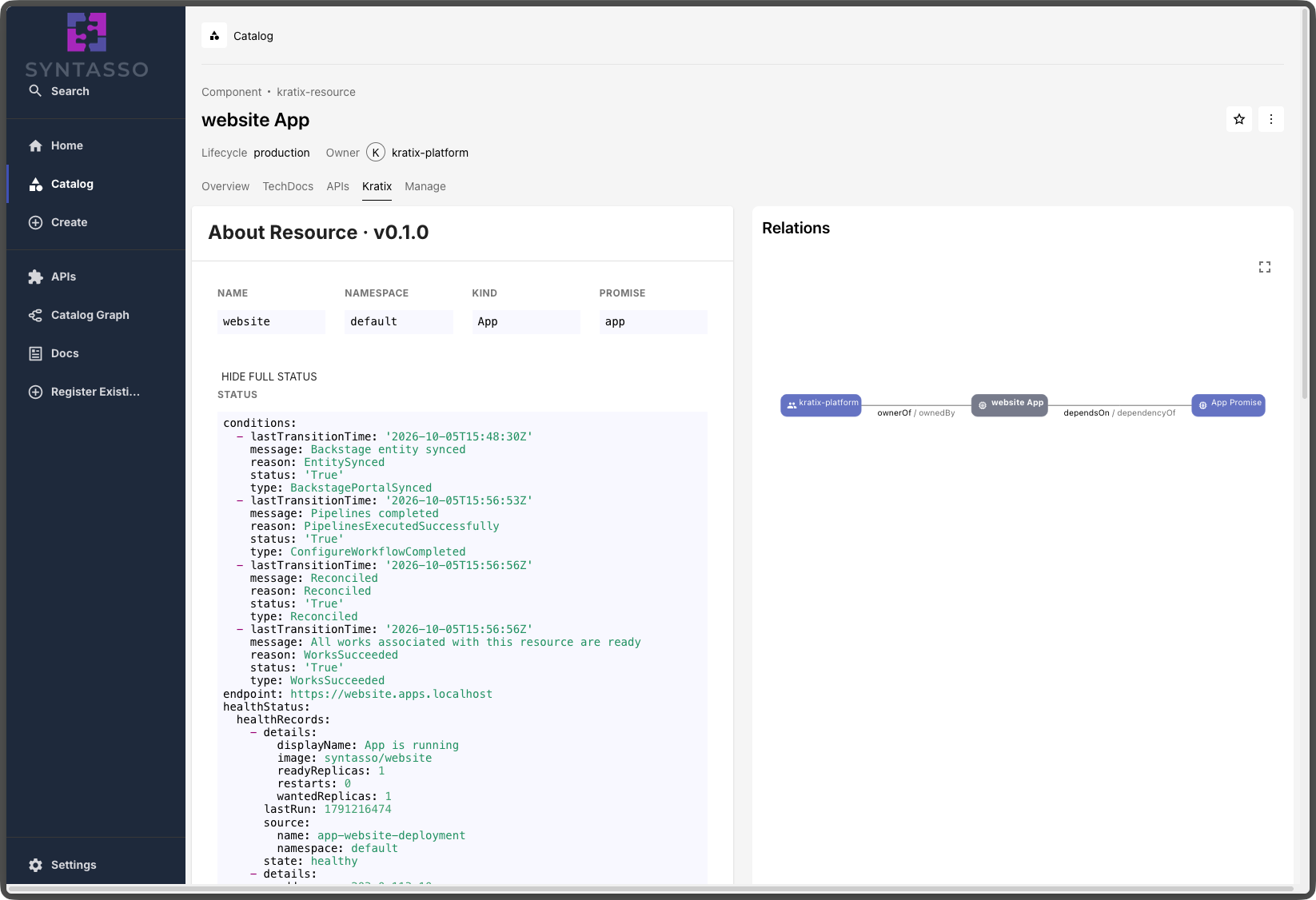

The original Resource page in Backstage, showing the resource status as raw YAML

Which is enough to get you started, but it won't necessarily wow the platform users. It solved the immediate problem for the platform engineer (how do I expose this service on Backstage?), but it was quite simple on the visual front. Apparently raw YAML is not everyone's cup of tea… not sure why. it better.

In this post, we will explore why the interface matters and how it can drive adoption of your platform. We'll look at what we had before, what we have learned from our customers, and how we used that learning to improve the out-of-the-box experience with Backstage. We will then look at what we have just released to make it even better.

TL;DR: Syntasso Kratix Enterprise (SKE) automatically generates Backstage Software Templates and catalog entities from your Kratix Promises. We have redesigned this out-of-the-box Backstage experience. Request forms are clearer, users pick a Backstage Group instead of a Kubernetes Namespace, and they get immediate "Pending" feedback after submitting. New Promise and Resource pages show health, status and provisioning progress at a glance, so platform users can find, request and track services without reading YAML.

Where we started: Backstage Software Templates generated from Kratix Promises​

Why the interface matters for platform adoption​

A problem lots of platform teams face in their organisations is adoption: they build a nice, self-contained, fully managed platform, full of amazing services, and… no one uses it. Often it's not a lack of functionality. We see this repeatedly with our customers, and some of the most commonly raised barriers to adoption are:

  • Developers don't know what's available in the platform.
  • Developers don't know how to consume and monitor what they requested from the platform.
  • Inertia is strong, and change is hard.

This is where portals like Backstage and Cortex really help. A platform can be technically excellent and still fail to gain adoption if it asks users to work in unfamiliar ways. A portal like Backstage turns those capabilities into discoverable, contextual artefacts: services, owners, environment lifecycles, request forms and documentation, all in one central place. Users can go through a wizard-like experience to request what they need, and quickly understand when things go wrong.

What are you talking about? Developers want clear APIs, CLIs, and ways to use things with AI. GUIs are not it.

Hear me out, I'm right there with you. Your users will only use your platform if they can integrate it with their existing workflows, and that often means making it programmable and accessible via APIs. They will need CLI tools, and MCP servers so their agents can consume the services. That's all true.

But as much as I love writing YAML, and as much as I find kubectl very simple to use, they may not be the best tools to get people started.

Ah, but we have a GitOps flow where you can open a PR to a repository and…

Sure. I'm certain it's great. But it adds more cognitive load for the platform user than clicking buttons, especially when they have many other things on their mind and just want access to the service they need. GUIs are familiar, and recognition rather than recall is an important part of making systems more accessible.

Portals do not replace APIs, CLIs or GitOps. They complement them. A portal can provide the easiest path into the platform, while more experienced users and automated systems continue to use the interfaces that best fit their workflows.

What our original Backstage integration looked like (and where developers got stuck)​

Of the three barriers above, our previous integration solved only service discovery: a Promise is installed, the Backstage Template is generated, and users can find the services in the Catalog. Users can see both a Component for the Promise and a Template to create an instance of that Promise:

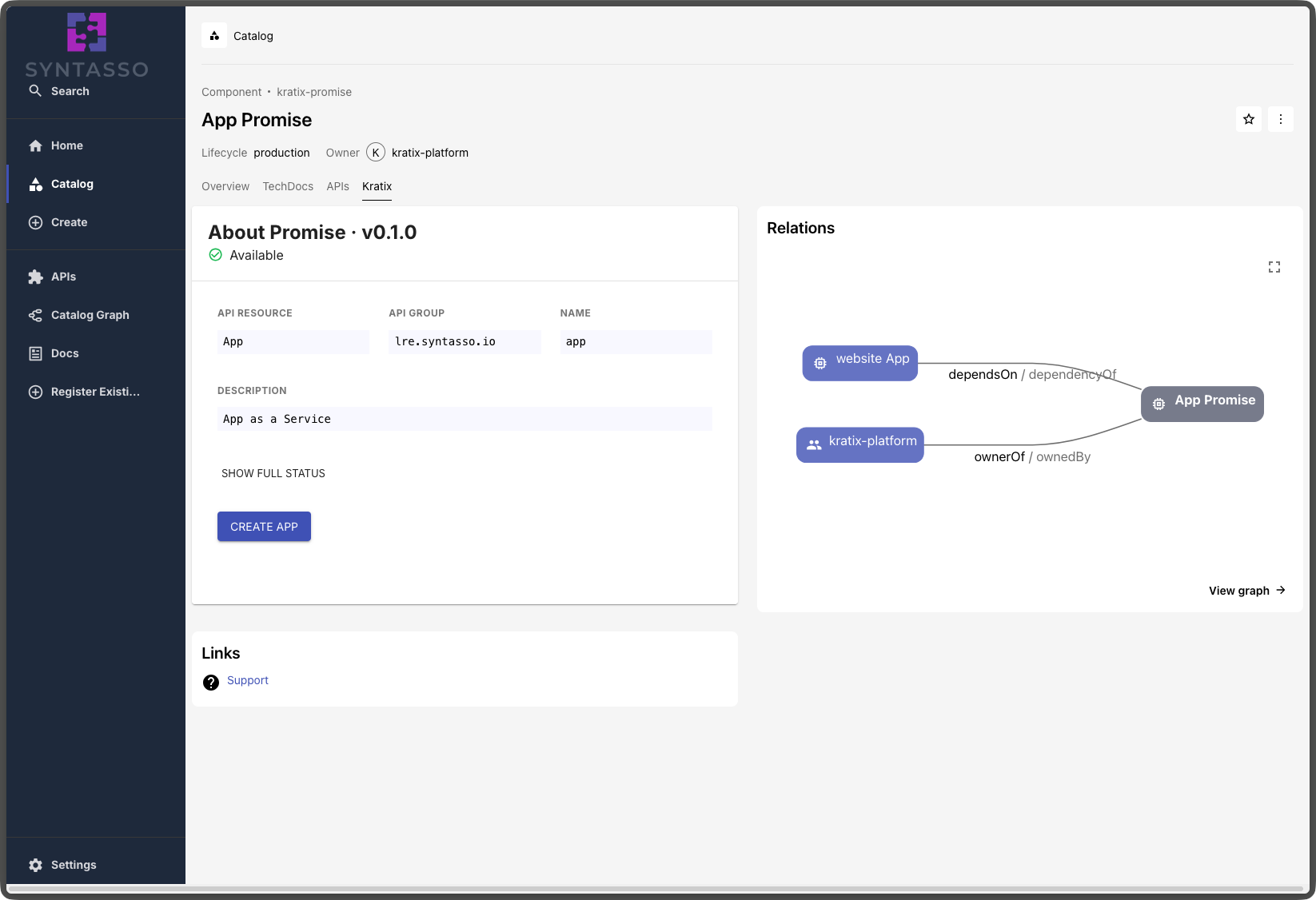

The original Promise Component page in Backstage

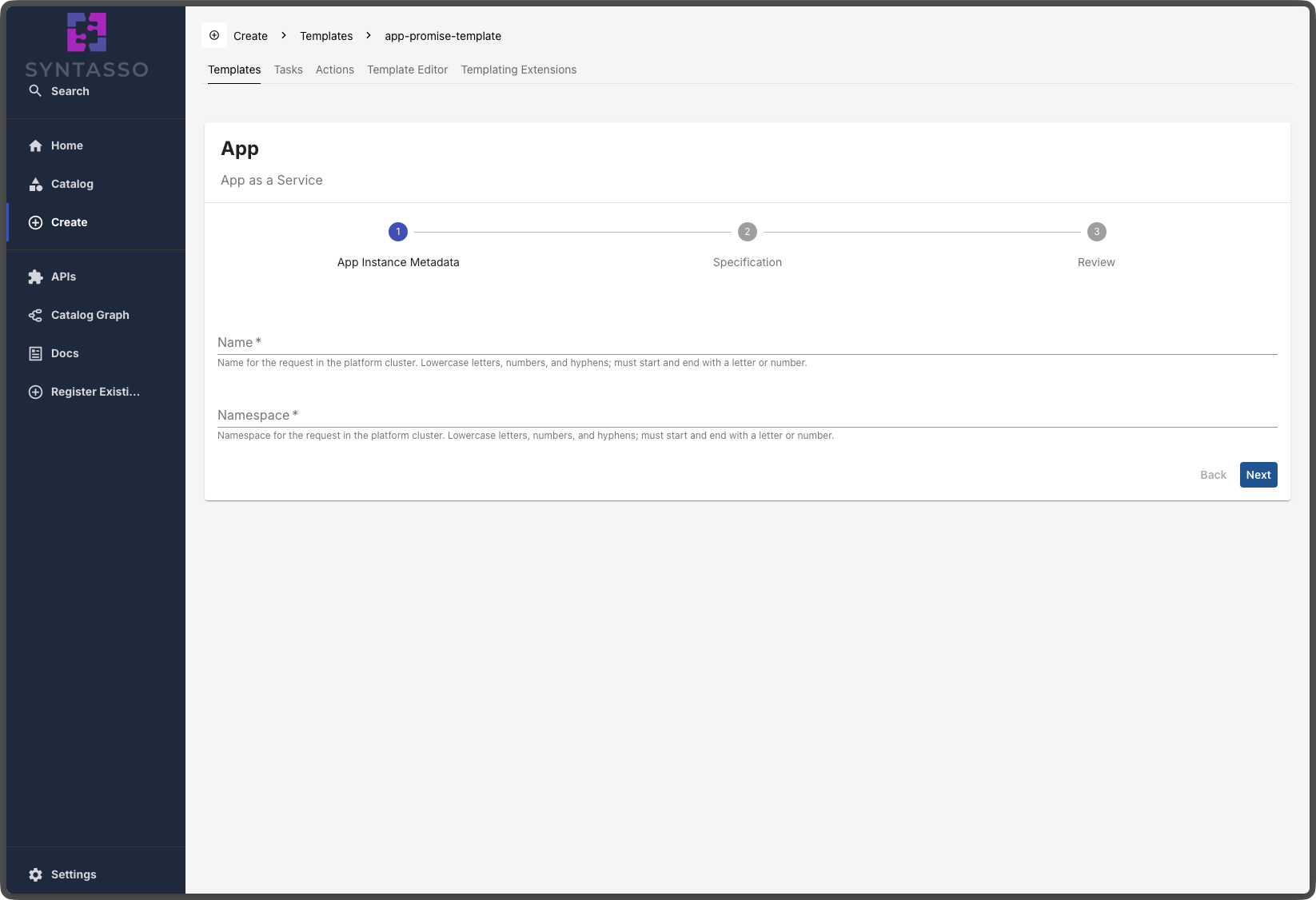

The original Template generated from a Promise

They can select the service they need, fill in the form, and create the service:

The original request form, asking the user for a Kubernetes Namespace

Once the request is fulfilled, the user sees a Component for their service, and can expand it to explore its status:

The original Resource page, showing the resource status as raw YAML

From the developer's point of view, the sharp edges show up quickly:

  • What is a Namespace? What value should I write in there?
  • The stepper on the Template uses Kratix-specific terms I don't understand. And what about these log lines?
  • I clicked save. Where's my resource?

On the Resource page, things get even more confusing:

  • Where can I see detailed information about my resource?
  • What did I even request again?
  • What is its status right now? Is it ready?
  • Wow, that's a lot of YAML.

Still better than a terminal (maybe?). In our defence, a Backstage expert could make it nicer using all the information that is buried in there, and could customise the generated entities. However, platform teams are already responsible for so much, and we wanted to make things much better.

The out-of-the-box Backstage experience in SKE​

We named the epic "Out-of-the-box Backstage". We wanted platform engineers and platform users to get a user-ready experience from our integration, with minimal configuration. Ideally, they install the Portal Controller, configure the SKE Backstage plugins, and get something that is not only beautiful, but also clear and informative.

On the Template, we focused on:

  • Making the language clearer, using terms developers already know.
  • Providing better error messages, and showing log lines meant for the person reading them.
  • Pointing the user to the resource they just created.
  • Offering an alternative to the Namespace field, using terms closer to what a Backstage user knows. The Portal Controller can now map the Backstage Groups a user belongs to onto Kubernetes Namespaces, either by group name or by a group annotation.

These small changes have already made a big difference to the developer experience: no more guessing what fields mean, no more confusing output, and a clear pointer to where to go next.

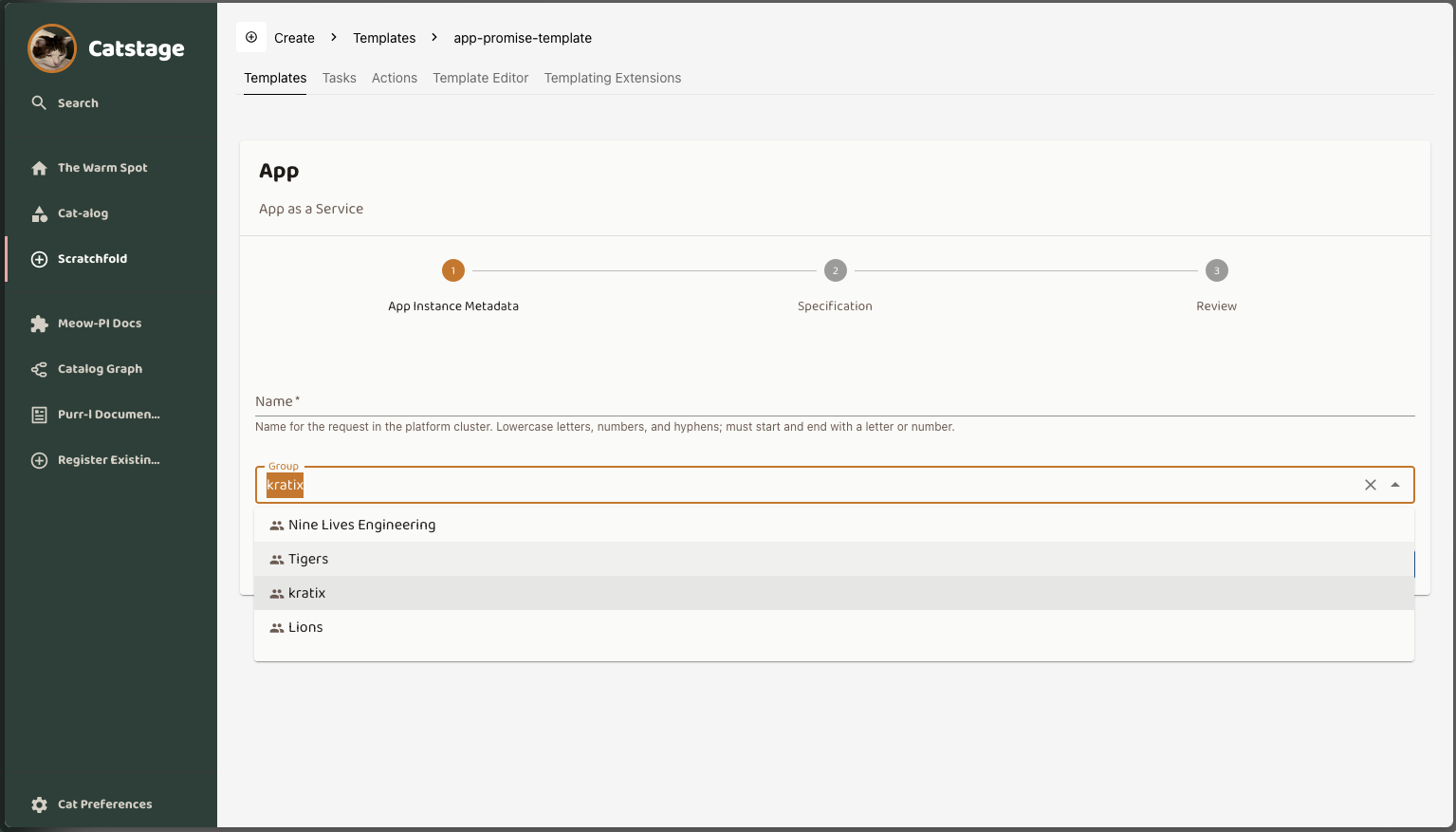

The new request form, where the user picks a Backstage Group

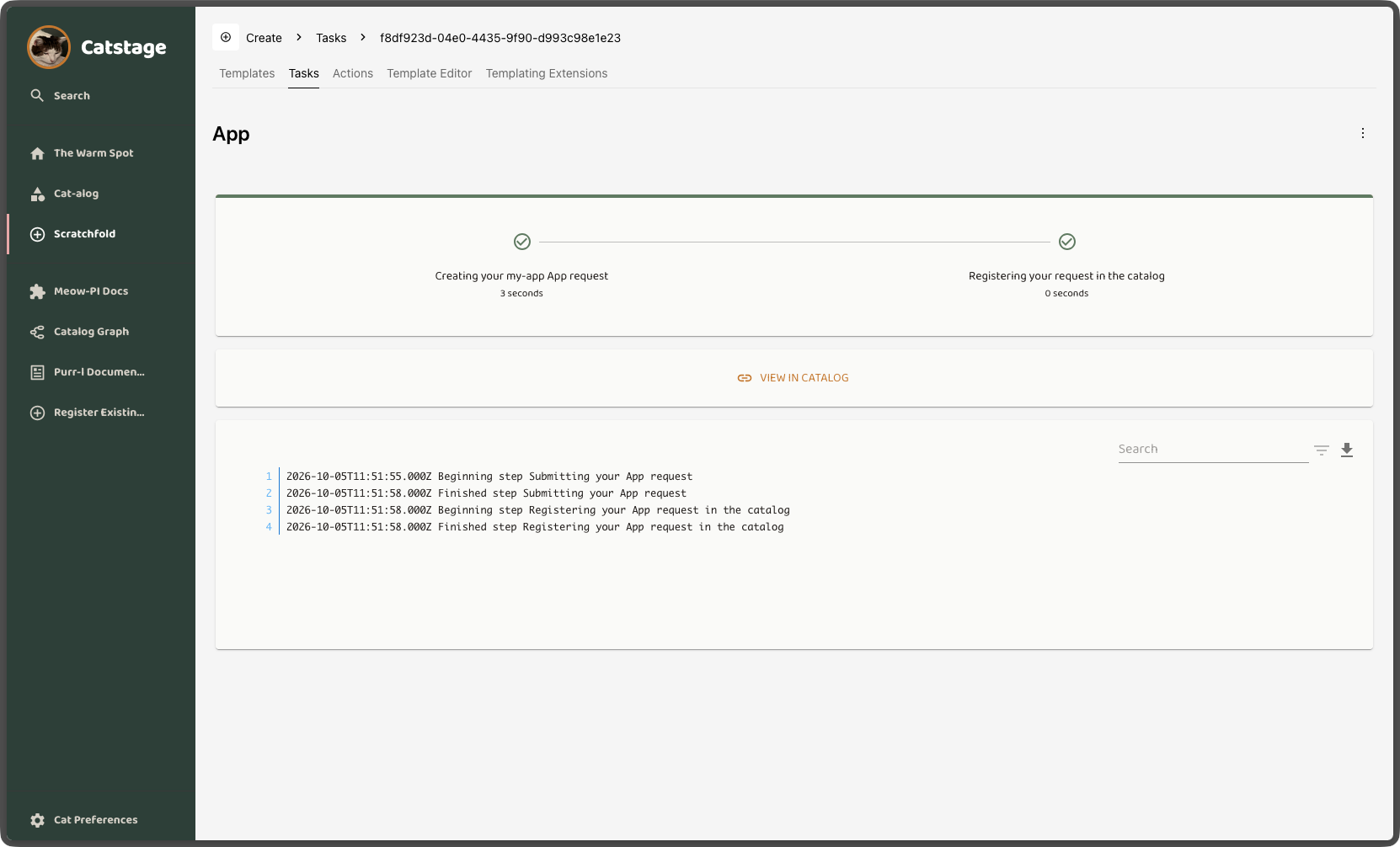

The new Template output, with clear log lines and a link to the new resource

There is a delay between the user submitting a request and the integration generating the Component for it. To give the user immediate feedback, we now create a "Pending" catalog entity for the resource straight away:

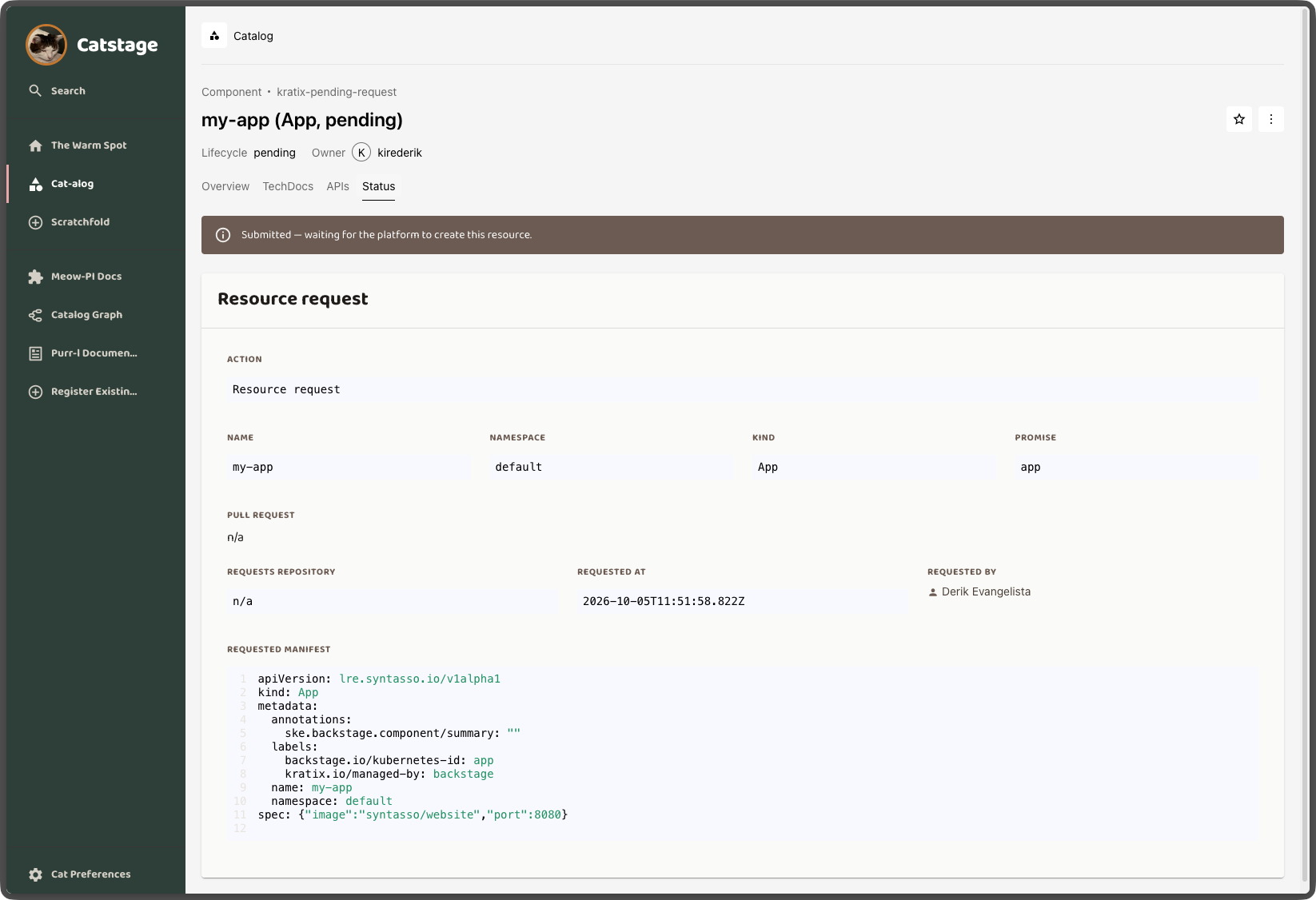

A Pending catalog entity, shown while the resource is being created

The big changes are in the Component pages. Both the Promise and Resource pages received a major revamp. From the Promise page, we wanted the portal user to be able to see:

  • Is the Promise currently available?
  • What is the status and version of the Promise?
  • Is this a Compound Promise?
  • How many instances of this Promise are there? Who owns them? At a glance, are the resources healthy?

You can see the changes in the screenshot below:

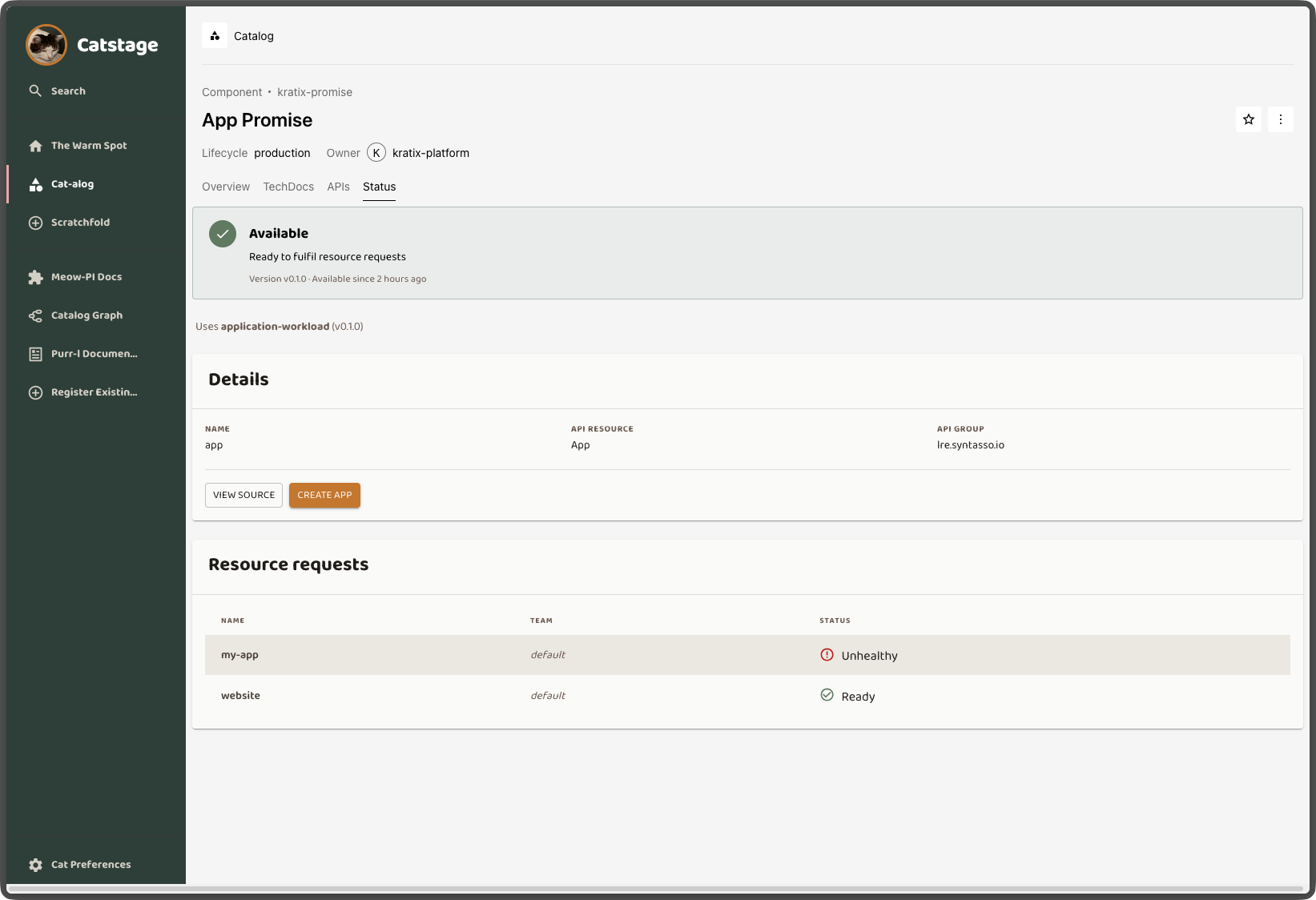

The new Promise page, showing availability, version, and a summary of its resources and their health

From there, you can navigate to the Resource itself. For the Resource page, we focused on answering these questions:

  • At a glance, what's the state of my resource?
  • What information is available to me about my resource?
  • Is my resource healthy? If not, what is failing, and why?
  • What's the status of the resource provisioning (or update)? If a stage failed, which one?
  • What was my original request?

The resulting changes are all captured in the screenshot below:

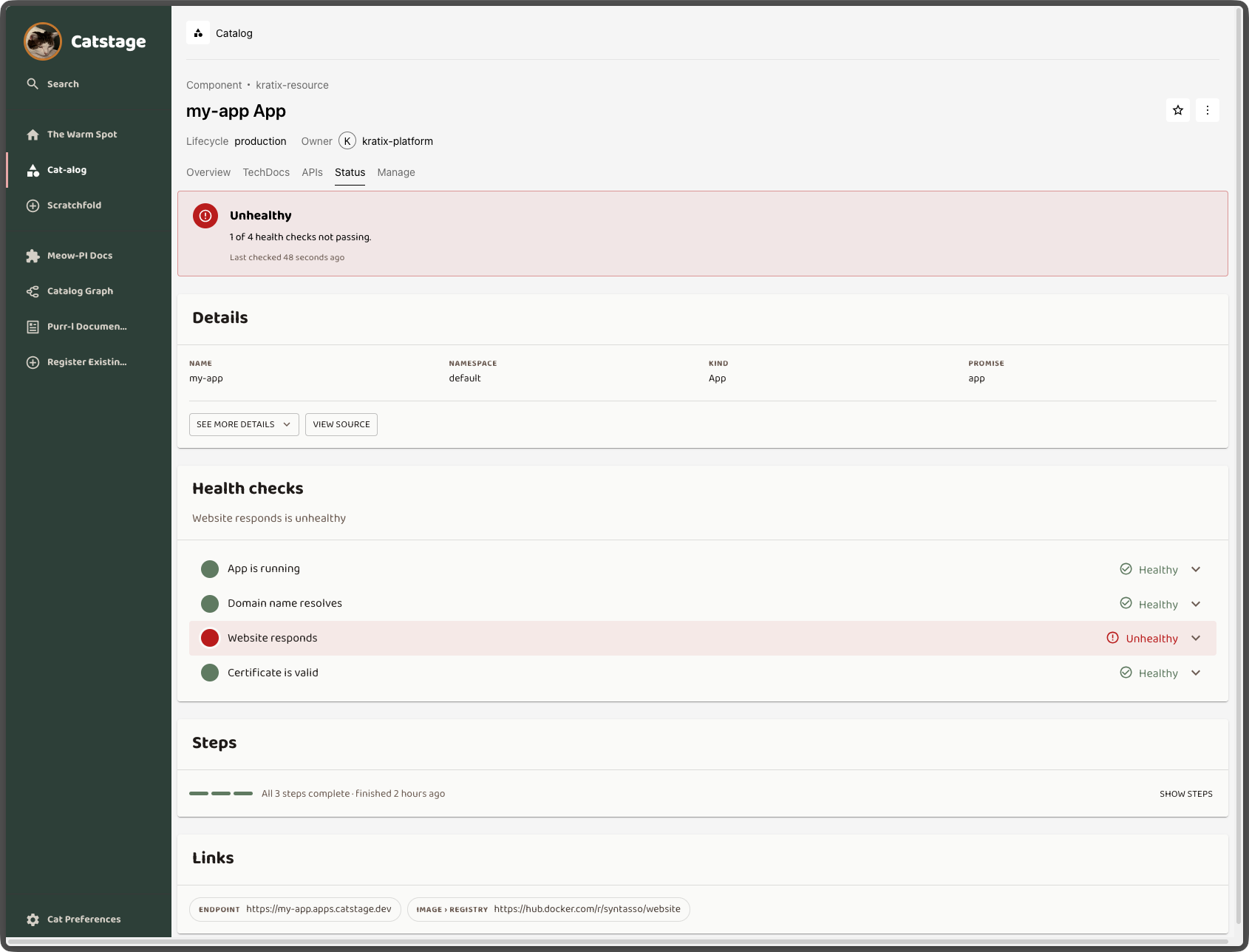

The new Resource page, showing status, health, workflow progress and the original request

As (I hope) you can see from the screenshots above, the out-of-the-box SKE Backstage integration is now much better. It gives your users a more compelling experience by tackling the discoverability and usability barriers to adoption we discussed earlier.

Of course, you can still customise how SKE generates the Backstage entities and hand-craft your Backstage experience to suit your organisation, but now you have a much better head start.

See the new Backstage integration in action​

Your platform can be technically excellent and still go unused if developers can't find what's on offer, request it confidently, and see what happened next. With SKE, every Promise you apply becomes a polished, self-service experience in Backstage: clear forms, instant feedback, and health and status at a glance, all generated for you. Your platform team doesn't have to hand-craft a single page.
