SKE Frontend Plugin

Overview​

@syntasso/plugin-ske-frontend adds Backstage Software Catalog pages for Kratix Promises and Kratix Resources.

Annotations on each catalog entity tell the plugin which page to show and how to load current data through the SKE backend plugin.

The pages let Backstage users view available services, create instances, check their status, and update or delete them.

The plugin supports both Backstage frontend systems:

  • The New Frontend System discovers the plugin's alpha entry point and adds the relevant entity content automatically
  • The legacy frontend system provides entity pages and a matching function that you add to your app's EntitySwitch

For setup instructions, see Installing and Configuring the Plugins.

Choosing the entity page​

The plugin uses isKratixType('promise') and isKratixType('resource') to decide whether a catalog entity represents a service definition or a service instance.

An entity matches when either:

  • metadata.annotations['kratix.io/type'] exactly matches promise or resource
  • the annotation is absent or empty and spec.type is kratix-promise or kratix-resource

If the kratix.io/type annotation has a non-empty value, it takes precedence over spec.type. An unrecognised non-empty annotation value will therefore prevent the spec.type fallback from matching. An empty value is treated in the same way as an absent annotation.

warning

Add kratix.io/type: promise to every Promise entity. Although the route matcher recognises spec.type: kratix-promise, the page also needs the annotation when it loads Promise data. Without it, the Promise Status tab does not load. It shows a missing-annotation message for Resource fields instead of the Promise details.

Resource entities can use either kratix.io/type: resource or spec.type: kratix-resource.

Entity pages​

Promise Status​

The Promise page includes a Status tab, which displays:

  • a banner giving the Promise's overall state in one word, with the version installed and how long it has been able to fulfil requests
  • the Promise this one is part of, when another Promise requires it
  • Details: the Promise's name, the API resource it serves and its API group
  • Workflows: one group per workflow, each with its own steps
  • Resource requests: every request made against the Promise
note

ske.mode: gitops cannot supply states. Live status is only available when ske.mode is set to kubernetes or hybrid.

The Status tab of a redis Promise: an Available banner, the Promise it is part of, the Details card, the Workflows card, and a table of eight resource requests with mixed states
The Status tab of a Promise, with requests in several states

When kratix.io/backstage-promise-template is present, the create button links directly to the Software Template in the default namespace. Without the annotation, the page links to Backstage's filtered Software Template list.

Software Template namespace

The plugin resolves Software Templates in the default Backstage namespace. This applies to Promise create actions, Resource updates, and pull-request deletion workflows.

Resource Status​

The Resource page includes a Status tab, which displays:

  • a banner giving the resource's overall status in one word, read from Kratix's Reconciled condition, or from the health checks once the platform has delivered. The health checks can set it to Unhealthy or Degraded, so the banner says which kind of problem the resource has, not only that it has one
  • Details: the instance name, namespace, kind and the Promise it came from, plus everything the resource reports about itself, and the whole manifest behind View source
  • Health checks, when the Promise writes HealthRecords
  • Steps, one row per pipeline of the resource's configure workflow
  • Links, every web address in the reported status

Every card is read from fields Kratix writes on the resource, so a Promise needs no configuration for the tab to be useful. Health checks are the exception: that card appears only for a Promise whose workflow writes HealthRecords.

The Status tab of a Redis resource: an Unhealthy banner saying 1 of 2 health checks are not passing, the Details card, the two checks with one of them unhealthy, and the folded Steps card
The Status tab of a resource with one failing health check

Resource Manage​

The Resource Manage tab loads the current instance data before presenting update and delete controls.

info

Without kratix.io/backstage-promise-template, the update area shows a missing annotation message. Direct deletion remains available.

Update a Resource​

The update form embeds the Backstage Software Template named by kratix.io/backstage-promise-template. It starts with these values from the current Resource data:

FieldMeaning
objnameResource metadata.name. Read-only.
objnamespaceResource metadata.namespace. Read-only.
specEditable Resource spec.
repoUrlRequest repository. Disabled when supplied.
prActionAlways Update, so the Template records the run as an update rather than a new request, and the task page can say so.

Example: updating a WebApp Resource

The Backstage Software Template form used to configure a WebApp Resource
Software Template form for a WebApp Resource

Submitting the form starts a Backstage scaffolder task and opens the task page.

Design Software Templates for updates

The plugin always runs the referenced Software Template and does not check whether it can safely update an existing instance. The template must support existing instances as well as new ones.

The embedded form registers Backstage's standard entity, owner, repository, and branch picker field extensions. The Secret field extension is not supported because Backstage does not export it as a field-extension component.

Delete a Resource​

The delete behaviour depends on the entity annotations.

Pull-request deletion

When both kratix.io/requests-repo-url and kratix.io/backstage-promise-template are present, the plugin runs the same Software Template with prAction: Delete and catalogPhase: pending-deletion. It then opens the scaffolder task page. The Software Template is expected to open a pull request that removes the Resource's YAML configuration file.

The instance remains available until the pull request is merged and the platform processes the removal of its configuration file.

Immediate deletion

When either annotation is absent, the plugin calls POST /api/ske/delete-resource on the SKE backend plugin to request deletion immediately.

Example: deleting a PostgreSQL Resource through a pull request

For a Resource configured for pull-request deletion, the plugin will show when there is a pull-request for deletion:

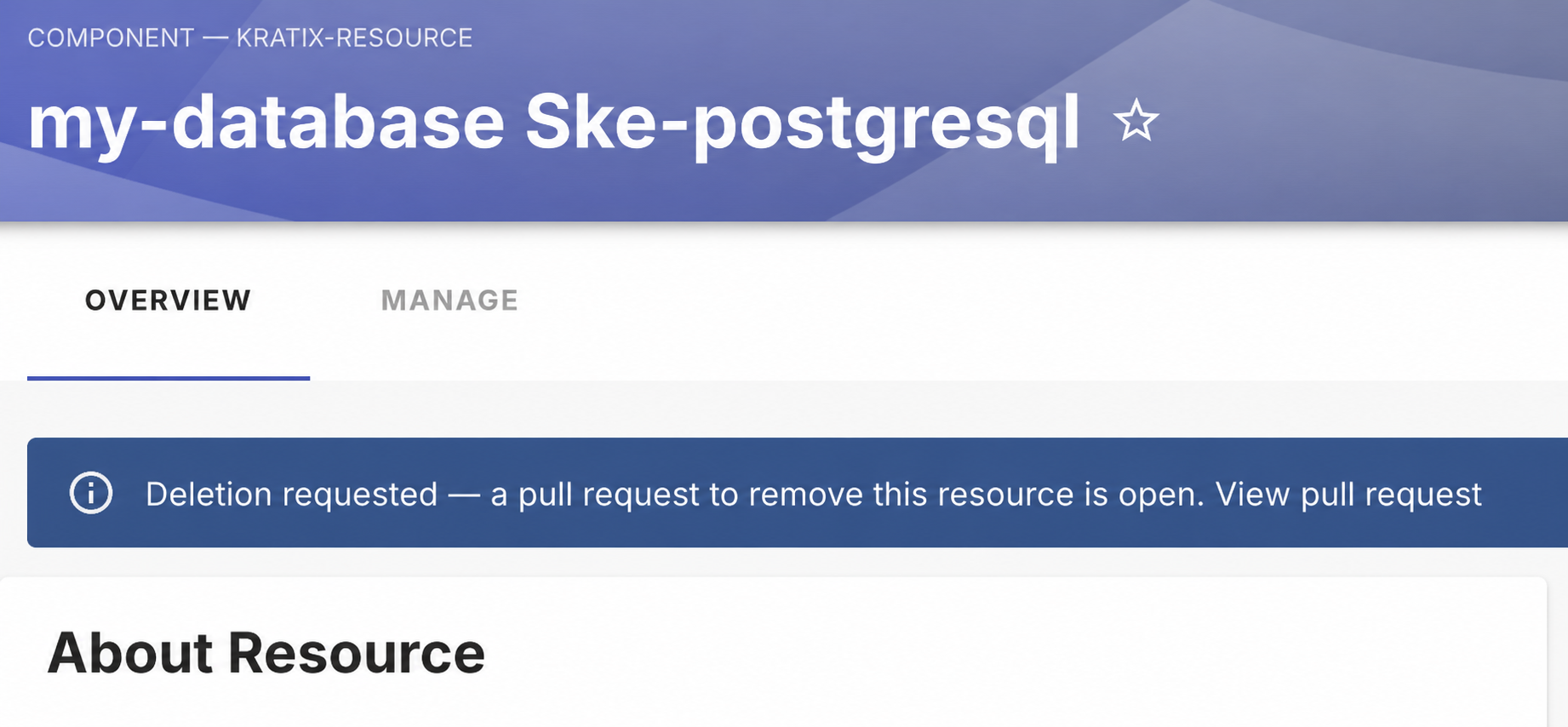

The top of a Resource page, with a banner saying deletion is waiting for approval and linking the pull request
Deletion-requested banner with a link to the pull request

Entity annotations​

Annotations are the configuration contract between a Backstage catalog entity and the frontend plugin. The snippets below show only the annotations read by the plugin. See YAML File Format for complete entity examples.

Promise annotations​

Promise annotations tell the plugin which Promise to load and what to display on its Overview card. They can also link the create action to a Software Template. The following example describes a Database Promise:

metadata:
annotations:
kratix.io/type: promise
kratix.io/promise-name: database
kratix.io/api-name: Database
kratix.io/api-group: marketplace.kratix.io
kratix.io/status: '{"message":"Available"}'
kratix.io/backstage-promise-template: database-promise-template

In this example, database-promise-template matches the Software Template's metadata.name:

apiVersion: scaffolder.backstage.io/v1beta3
kind: Template
metadata:
name: database-promise-template
namespace: default

The Software Template's parameters and steps are omitted because they do not affect how the plugin finds the entity.

AnnotationRequiredMeaning
kratix.io/typeYesSelects Promise rendering and data loading.
kratix.io/promise-nameYesPromise name used by the backend.
kratix.io/api-nameNoService type and create-button label.
kratix.io/api-groupNoService API group.
kratix.io/statusNoFallback status as JSON.
kratix.io/backstage-promise-templateNoSoftware Template name.

kratix.io/api-name and kratix.io/api-group default to n/a. The plugin displays kratix.io/status as YAML. It resolves the Software Template in the default namespace.

kratix.io/status must contain valid JSON

This requirement applies only to kratix.io/status. When used as a fallback, the annotation is parsed as JSON before the plugin displays it as YAML. An invalid value prevents the details card from rendering.

Resource annotations​

Resource annotations tell the plugin which Kubernetes Resource backs the catalog entity and what to display on its Status tab. They can also link the Manage tab to a Software Template for updates. The following table shows the list of annotations we can have:

AnnotationRequiredMeaning
kratix.io/typeNoSelects Resource rendering.
kratix.io/groupYesAPI group used to find the Resource.
kratix.io/versionYesAPI version used to find the Resource.
kratix.io/kindYesKind used to find the Resource.
kratix.io/nameYesResource name.
kratix.io/namespaceYesResource namespace.
kratix.io/promise-nameNoPromise name displayed by the plugin.
kratix.io/statusNoFallback status as JSON.
kratix.io/promise-summaryNoMarkdown summary for Overview.
kratix.io/backstage-promise-templateFor updatesTemplate name.

When kratix.io/type is absent, use spec.type: kratix-resource. Status returned by the backend takes precedence over kratix.io/status. The Software Template is resolved in the default namespace.

Supply the complete Resource identifier

The current hook detects missing kratix.io/kind, kratix.io/name, and kratix.io/namespace values before it calls the backend. It does not detect a missing kratix.io/group or kratix.io/version; instead, it sends an invalid API version containing undefined. Always supply all five annotations.

The following example describes a PostgreSQL Resource named prod-db:

metadata:
annotations:
kratix.io/type: resource
kratix.io/promise-name: database
kratix.io/group: marketplace.kratix.io
kratix.io/version: v1alpha1
kratix.io/kind: database
kratix.io/name: prod-db
kratix.io/namespace: team-backend
kratix.io/status: >-
{"instanceName":"prod-db-postgresql","pgVersion":"14.17"}
kratix.io/backstage-promise-template: database-promise-template
kratix.io/promise-summary: PostgreSQL with automated backups

Pull-request workflow annotations​

These optional Resource annotations support Software Template workflows that propose Resource changes through pull requests, described in the following table:

AnnotationMeaning
kratix.io/requests-repo-urlResource configuration repository.
kratix.io/phasePull-request workflow state.
kratix.io/pull-request-urlPull-request link.

Here's an example of an resource annotated for pull-request updates:

metadata:
annotations:
kratix.io/requests-repo-url: >-
github.com?owner=example-org&repo=platform-requests
kratix.io/phase: pending-review
kratix.io/pull-request-url: >-
https://github.com/example-org/platform-requests/pull/42

The Manage tab pre-fills kratix.io/requests-repo-url, prevents it from being changed, and uses it to select pull-request deletion. The value uses Backstage's RepoUrlPicker format: <HOST>?owner=<OWNER>&repo=<REPOSITORY>.

Set kratix.io/phase to pending-review and provide kratix.io/pull-request-url to show an open pull-request banner. The pending-review banner is not shown without the URL.

Set kratix.io/phase to pending-deletion to show a deletion-requested banner. This banner does not require kratix.io/pull-request-url, but includes a View pull request link when the URL is present.

The top of a Resource page, showing the two-step progress of an open pull request and a link to it
Open pull-request banner for a Resource

Loading data and displaying status​

The frontend plugin discovers the backend with the ske plugin ID and calls the backend plugin endpoints.

For a Promise, it sends the following identifiers to the backend:

apiVersion=platform.kratix.io/v1alpha1
kind=Promise
name=<kratix.io/promise-name>

For a Resource, it builds the backend request from kratix.io/group, kratix.io/version, kratix.io/kind, kratix.io/name, and kratix.io/namespace. Together, these values identify one service instance on the platform.

The response affects the page as follows:

  • 200 without metadata.deletionTimestamp: stores and displays the returned manifest and status
  • 200 with metadata.deletionTimestamp: puts the page into the deleting state without storing the returned manifest. The page falls back to catalog entity annotations, and Resource management controls are unavailable
  • 404 for a Resource: treats the Resource as being deleted or already removed
  • 404 for a Promise: leaves the page available without current backend data, supporting GitOps mode where the repository may not contain Promise definitions
  • Any other response with a JSON body: displays an error banner and includes the response message when present

The hook does not catch discovery failures, rejected fetches, or responses that cannot be parsed as JSON. Those failures do not move the hook to Stage.ERROR.

GitOps Promise status

When the backend cannot find a Promise definition in its configured repository, Promise status can only come from kratix.io/status on the catalog entity.

For Resource entities, pull-request banners use catalog entity annotations rather than the data returned by the backend. This allows the page to show a pending deletion while the instance still exists and waits for a pull request to merge. A pending-deletion banner takes precedence over fetch errors and pending-review banners.

Hooks​

useKratixResourceFetcher​

useKratixResourceFetcher loads the Promise or Resource associated with the current catalog entity. It also manages loading and deletion state, checks for required annotations, and creates the status banners used by the plugin's Status and Manage tabs.

Use this hook when building custom catalog entity content that needs the same data and state as the plugin's supplied components.

The component calling the hook must be rendered within a Backstage catalog entity context. The hook uses useEntity to read the current entity and uses Backstage's discovery and fetch APIs to call the ske backend plugin.

The hook uses the following Types:

TypeKindPurpose
ResourceTypeUnionIdentifies whether the hook loads a Promise or Resource
UseKratixResourceFetcherOptionsInterfaceConfigures the hook
KratixResourceResultInterfaceDescribes the hook's return value
StageEnumRepresents the current fetch or deletion stage
EntityIdentifierObject TypeIdentifies a Resource and its update workflow

ResourceType​

ResourceType identifies which platform object the hook loads:

type ResourceType = 'resource' | 'promise';
ValueMeaning
resourceLoad a Kratix Resource instance
promiseLoad a Kratix Promise

UseKratixResourceFetcherOptions​

UseKratixResourceFetcherOptions is the optional object passed to the hook:

interface UseKratixResourceFetcherOptions {
resourceType?: ResourceType;
}
FieldRequiredDefaultMeaning
resourceTypeNoDetectedOverrides the entity type to load

When resourceType is omitted, the hook reads kratix.io/type. The value promise selects Promise loading. Any other value, including an absent annotation, selects Resource loading. Unlike isKratixType, the hook does not use spec.type as a fallback.

Promise loading requires kratix.io/promise-name. When it is absent, the hook does not call the backend but remains in Stage.FETCHING; the supplied Status and Manage tabs therefore continue to show their loading state.

A valid Resource request requires kratix.io/group, kratix.io/version, kratix.io/kind, kratix.io/name, and kratix.io/namespace. The hook currently flags only a missing kind, name, or namespace through missingKratixAnnotations. See Entity annotations for the complete configuration.

KratixResourceResult​

KratixResourceResult describes the object returned by the hook:

interface KratixResourceResult {
resource: any;
bannerMessage: string;
showBanner: boolean;
banner: JSX.Element;
resourceType: ResourceType;
currentStage: Stage;
setStage: (stage: Stage) => void;
missingKratixAnnotations: boolean;
showDeletionBanner: boolean;
entityIdentifier: EntityIdentifier | undefined;
}
FieldTypeMeaning
resourceanyManifest returned by the backend; null until a manifest is loaded
bannerMessagestringError or deletion message; an empty string when no message is set
showBannerbooleanWhether to render banner
bannerJSX.ElementGrid element containing the current status banner, when one applies
resourceTypeResourceTypeType selected by the override or entity annotation
currentStageStageCurrent fetch or deletion stage
setStage(stage: Stage) => voidUpdates currentStage; the DELETING stage also sets the deletion message
missingKratixAnnotationsbooleanWhether the Promise name, or the Resource kind, name, or namespace, is absent. Missing Resource group and version annotations are not detected
showDeletionBannerbooleanBackwards-compatible alias of showBanner
entityIdentifierEntityIdentifier | undefinedResource identifiers and update-workflow configuration; undefined for a Promise

The hook does not populate entityIdentifier when resourceType is promise. Only access this field for a Resource.

When annotations represented by missingKratixAnnotations are absent, the hook does not call the backend. Check missingKratixAnnotations before rendering data. Backend responses and banner precedence follow the behaviour described in Loading data and displaying status.

Stage​

Stage represents the hook's current request or deletion state:

enum Stage {
FETCHING = 'fetching',
DELETING = 'deleting',
READY = 'ready',
ERROR = 'error',
}
MemberValueMeaning
Stage.FETCHINGfetchingThe hook is waiting for the backend response
Stage.DELETINGdeletingThe Resource has a deletion timestamp, was not found, or deletion was requested
Stage.READYreadyLoading completed without an error
Stage.ERRORerrorA JSON response reports an error, or the Resource kind, name, or namespace is absent

The initial stage is Stage.FETCHING. A 404 response moves a Resource to Stage.DELETING, but moves a Promise to Stage.READY to support GitOps mode. A Promise without kratix.io/promise-name remains in Stage.FETCHING.

EntityIdentifier​

EntityIdentifier contains the identifiers and optional workflow configuration that the Manage tab needs for a Resource:

type EntityIdentifier = {
kind: string;
namespace: string | undefined;
name: string;
apiVersion: string;
templateName: string | undefined;
requestsRepoUrl?: string;
};
FieldTypeMeaning
kindstringValue of kratix.io/kind
namespacestring | undefinedValue of kratix.io/namespace
namestringValue of kratix.io/name
apiVersionstring<kratix.io/group>/<kratix.io/version>
templateNamestring | undefinedValue of kratix.io/backstage-promise-template
requestsRepoUrlstring | undefinedValue of kratix.io/requests-repo-url in Backstage RepoUrlPicker format

Example​

This custom component displays the status returned for the current Resource. It assumes the component is rendered on a catalog entity page:

import {
useKratixResourceFetcher,
} from '@syntasso/plugin-ske-frontend';

export const ResourceStatus = () => {
const {
banner,
missingKratixAnnotations,
resource,
showBanner,
} = useKratixResourceFetcher({ resourceType: 'resource' });

if (missingKratixAnnotations) {
return <p>This catalog entity is missing its Resource annotations.</p>;
}

return (
<>
{showBanner && banner}
<pre>{JSON.stringify(resource?.status ?? {}, null, 2)}</pre>
</>
);
};

Components​

The package exports React components for complete entity pages, individual tabs, and lower-level content. Use these exports as JSX rather than calling them as functions.

The examples below focus on each component. Imports and surrounding Backstage app setup are omitted.

KratixPromiseEntityPage​

It provides a complete EntityLayout for a Promise, and requires content, which it adds to the Status tab alongside the plugin content.

<KratixPromiseEntityPage>
{entityWarningContent}
</KratixPromiseEntityPage>

KratixResourceEntityPage​

It provides a complete EntityLayout for a Resource, requires content for the Status tab, and adds the Manage tab.

<KratixResourceEntityPage>
{entityWarningContent}
</KratixResourceEntityPage>

KratixOverviewTab​

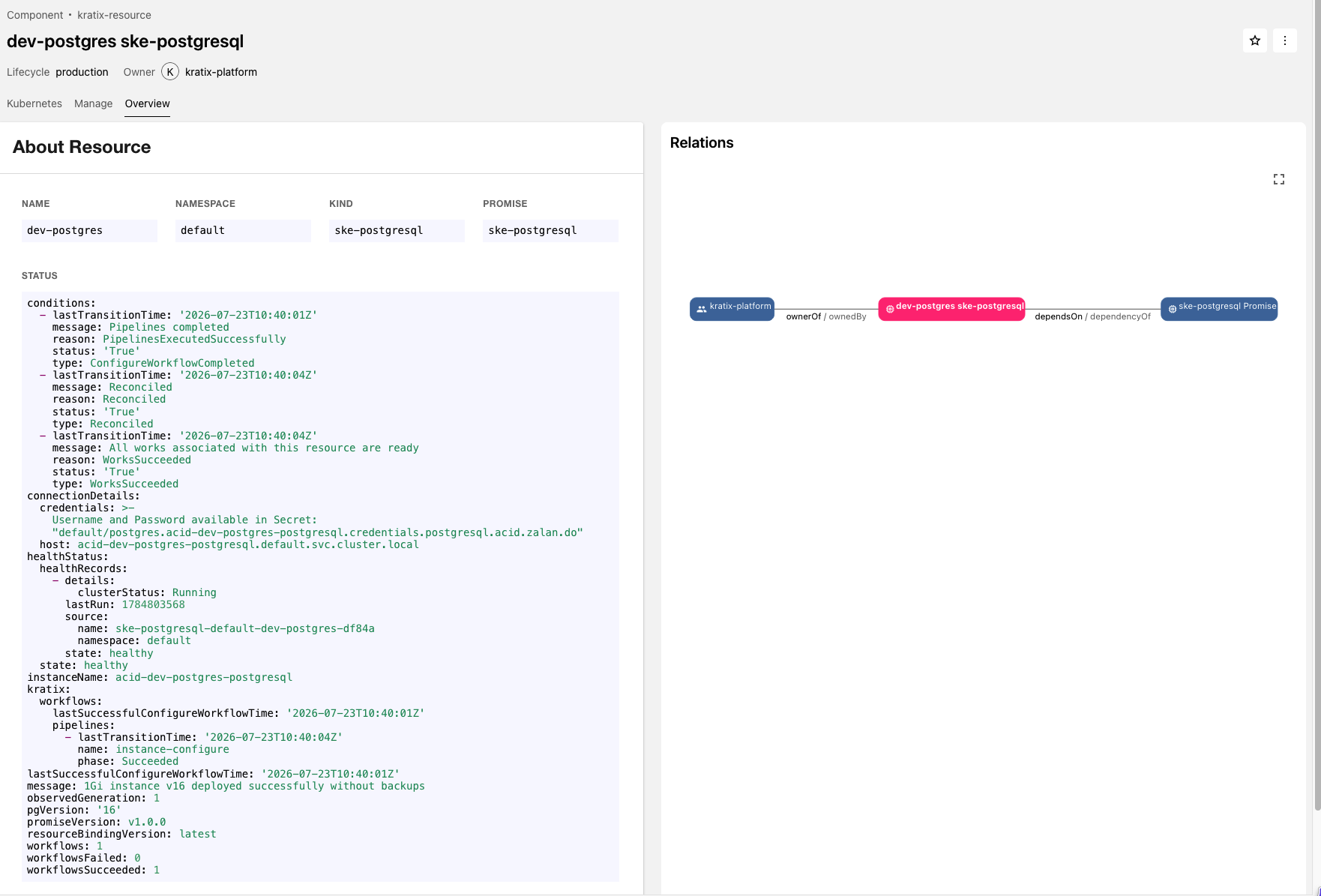

It provides the Status tab content for a Promise, and the Status tab content for a Resource. It accepts optional content and a resourceType override; otherwise, it infers the type from the catalog entity.

<KratixOverviewTab resourceType="resource">
{entityWarningContent}
</KratixOverviewTab>

KratixManageTab​

It provides the Manage tab content and accepts an optional resourceType override. Otherwise, it infers the type from the catalog entity. Resources include update and delete controls; Promises show a placeholder.

<KratixManageTab resourceType="resource" />

KratixAboutCard​

It provides the details card for a Promise or Resource page. It requires a Promise or Resource from the SKE backend and accepts an optional entityType override.

<KratixAboutCard entity={resource} entityType="resource" />

KratixResourceManageContent​

It provides the lower-level update and delete content used by KratixManageTab. It requires the Resource identifier, loading stage, stage setter, and current Resource data. Most applications should use KratixManageTab, which supplies those values.

<KratixResourceManageContent
entityIdentifier={entityIdentifier}
entityState={currentStage}
kratixResource={resource}
setCurrentStage={setCurrentStage}
/>

Scaffolder field extensions​

The package also exports custom field extensions for use on Template forms, selected with ui:field on a property.

ScopedEntityPicker​

ScopedEntityPicker is an extension of Backstage's EntityPicker whose catalogFilter may reference other fields of the same form, so one choice narrows the next.

In this example the System field is an ordinary EntityPicker, and the Service field offers only the services within the System that was picked:

- title: Specification
properties:
spec:
properties:
system:
type: string
title: System
ui:field: EntityPicker
ui:options:
catalogFilter:
kind: System
targetService:
type: string
title: Service
ui:field: ScopedEntityPicker
ui:options:
catalogFilter:
kind: Component
relations.partOf: '{{ parameters.spec.system }}'

ScopedEntityPicker accepts every ui:options keys the EntityPicker does, such as defaultKind, defaultNamespace and allowArbitraryValues, and passes them through unchanged. Only catalogFilter is treated specially.

Resolving the filter​

Any string in catalogFilter, at any depth and inside lists, may contain {{ parameters.<path> }}. The path is read from the form data accumulated across every step so far, so a reference may point at a field on an earlier page or on the same one.

Resolution is all-or-nothing: if any reference in the filter resolves to nothing, the field renders as a disabled input, still showing any value it holds.

A catalogFilter with no references in it behaves exactly like EntityPicker.

Behaviour when the referenced field changes​

  • The picker re-queries the catalog whenever the resolved filter changes, and offers the new scope's entities.
  • A selection already made is kept if it is in the new scope, and cleared if the catalog read for the new scope comes back without it. Values are compared as entity references, honouring defaultKind and defaultNamespace and ignoring case, so payments-api and component:default/payments-api are the same selection.

The field behaves the same way on the create form and on the Manage tab.

Choosing a filter key​

Any entity field or relation can be a filter key. Where a key holds a list, matching means "contains". Keys and values are matched case-insensitively.

Besides keys over the spec, you can also use relations.partOf. The common relations on a Component are:

spec fieldRelation
spec.ownerrelations.ownedBy
spec.systemrelations.partOf
spec.subcomponentOfrelations.partOf
spec.dependsOnrelations.dependsOn
spec.providesApisrelations.providesApi
spec.consumesApisrelations.consumesApi

See well-known relations for the full list.

Registering the field​

Applications on Backstage's new frontend system need no wiring: the /alpha entry point registers the field, and the Manage tab already includes it.

On the legacy frontend system, register it in your app's scaffolder route alongside any other custom fields:

import { ScopedEntityPickerFieldExtension } from '@syntasso/plugin-ske-frontend';
import { ScaffolderFieldExtensions } from '@backstage/plugin-scaffolder-react';

<Route path="/create" element={<ScaffolderPage />}>
<ScaffolderFieldExtensions>
<ScopedEntityPickerFieldExtension />
</ScaffolderFieldExtensions>
</Route>;

Plugin integration​

The package also exports values for integrating the plugin with Backstage's frontend systems.

skeFrontendPlugin​

skeFrontendPlugin is the plugin object created with Backstage's createPlugin. It owns the ske-frontend plugin ID and root route used by the legacy frontend system.

isKratixType​

isKratixType is a utility function used to identify Kratix entities by type. Calling isKratixType('promise') or isKratixType('resource') will inform whether the entity matches the specified type. Use this function with EntitySwitch.Case to select the appropriate entity page.

<EntitySwitch.Case if={isKratixType('promise')}>
{promisePage}
</EntitySwitch.Case>

New Frontend System entry point​

The @syntasso/plugin-ske-frontend/alpha entry point registers Kratix routes on Backstage Software Catalog entity pages. When Backstage loads the plugin, users can open Kratix Promises and Resources through the same entity-page navigation as other catalog entities. You do not need to add these routes to an EntitySwitch manually.

The plugin checks the entity type and adds the relevant configuration:

EntityRouteContent
Promise/Status tab
Resource/Status tab
Resource/manageManage tab with update and delete controls

These paths are relative to the catalog entity page, rather than top-level Backstage routes. Other catalog entity types are unaffected.

Catalog filter​

The alpha entry point also adds a Requests with open PRs checkbox to the catalog's filter sidebar. It shows how many resources have an open pull request, and narrows the catalog to those resources when ticked. A request whose resource does not exist yet appears as a pending request entity instead, and the filter excludes it.

The filter is enabled by default. Its extension ID is catalog-filter:ske-frontend/in-flight-change. To turn it off, disable the extension in app-config.yaml:

app:
extensions:
- catalog-filter:ske-frontend/in-flight-change: false

scaffolderModuleResourceRequestCopy​

A module, also exported from @syntasso/plugin-ske-frontend/alpha, that makes the scaffolder task page describe a resource request as creating, updating or deleting the resource, naming its kind and the name the developer typed. Add it to your app's features alongside the plugin. Without it the page shows the step names the generated Template carries, which are the same for a create and an update.

import { scaffolderModuleResourceRequestCopy } from '@syntasso/plugin-ske-frontend/alpha';

const app = createApp({
features: [scaffolderModuleResourceRequestCopy /* , ... */],
});

Backstage cannot register it for you because it replaces the scaffolder plugin's scaffolderApiRef, and an app can only have one. Everything except reading a task is passed straight to the stock client, and tasks from Templates other than the generated ones are left as they are. The wording it shows is listed under delivery modes.

On the legacy frontend system, wrap the scaffolder client yourself with withResourceRequestCopy, exported from @syntasso/plugin-ske-frontend:

import { withResourceRequestCopy } from '@syntasso/plugin-ske-frontend';
import { scaffolderApiRef } from '@backstage/plugin-scaffolder-react';
import { ScaffolderClient } from '@backstage/plugin-scaffolder-common';

createApiFactory({
api: scaffolderApiRef,
deps: {
discoveryApi: discoveryApiRef,
scmIntegrationsApi: scmIntegrationsApiRef,
fetchApi: fetchApiRef,
identityApi: identityApiRef,
},
factory: deps => withResourceRequestCopy(new ScaffolderClient(deps)),
}),
